Once you have designed and analyzed a complete SDL system, it is possible to simulate the system, i.e. to interactively inspect and check its actual behavior. To be able to simulate the DemonGame system, you must first generate an executable simulator and then start the simulator with a suitable user interface.
-----------------------------------------------------------------------
Note:
In order to generate a simulator that behaves as stated in the exercis
es, you should copy all SDL diagrams that are included in the distri
bution to your work directory (~/demon_game). These diagrams are
by default stored in a subdirectory to the SDT installation directory.
The name of the directory should be
$sdtrelease/examples/demongame
If you generate a simulator from the diagrams that you have created,
the scheduling of processes (i.e. the execution order) may differ.
-----------------------------------------------------------------------
- To generate an executable simulator
- To start the simulator user interface
- To start a simulator from the user interface
To generate an executable simulation program, do as follows:
- Make sure the system diagram icon is selected in the Organizer.
- Select the Make command from the Generate menu. The Make options dialog is opened:
Figure\x11 88 : The Make Options Dialog.
-----
(fig)
-----
- Adjust the options in accordance to Figure 88, i.e.
- Analyze & generate code on
- Compile & link on
- Generate makefile on
- Standard kernel on. Make sure the kernel Simulation is specified to the right; if not, select it from the option menu.
- Click the Make button.
- Check that no errors occurred. The Organizer's status bar should read "Compiler done" and the Organizer Log should report no errors between the "Make started" and "Make completed" messages.
- If errors were reported, bring up the Make options dialog again, but click the Full Make button instead. This time, no errors should be reported.
The generated simulator is now stored on a file called demongame_xxx.sct in the directory from which you started SDT (the _xxx suffix is platform specific). The simulator contains a monitor system that provides a set of commands which can be used to control the execution of the simulator.
It is possible for you to execute the simulator directly from the UNIX prompt, in which case you have to enter all commands to the monitor system textually using a simple command-line interface. However, SDT provides a much more user-friendly graphical interface to the simulator that is started from the Organizer.
- From the Tools menu, select the command Simulator UI.
- After a short while, the Simulator UI window is opened:
Figure\x11 89 : The Main Window of the Simulator UI.
-----
(fig)
-----
The text area to the right informs you that no simulator is running. The text area displays the textual input/output from the monitor system, such as entered commands, the results of commands, and error messages.
- To start a simulator, select Open from the File menu, or click the Open quick button.
- In the file selection dialog, the generated simulator file described above should be listed. Select it and click OK.
- The text area of the Simulator UI greets you with a welcome message to acknowledge that the simulator has been started:
Welcome to SDT SIMULATOR. Simulating system Demongame
When a simulator is started, the static process instances in the system are created (in this case Main and Demon), but their initial transitions are not executed. The process in turn to be executed is the Main process.
The Simulator UI is now ready to accept commands to the monitor system. Whenever it is possible to enter a command, the prompt Command: is issued in the text area.
- To enter commands textually
- To show the next symbol to be executed
- To interpret printed trace and graphical trace
- To execute the next transition
- To issue commands using buttons
- To send signals from the environment.
In this exercise, you will execute the start transitions in the process instances of the system. First, however, we must set the amount of trace information that we want printed during execution. The command Set-Trace is used for setting the trace level.
For now, you will enter commands textually by using the text field Command: just below the text area; this field is called the input line.
- Click in the input line to place the cursor. Enter the command
set-trace 6 and hit <Return>. The value 6 specifies that we want full information about the actions that are performed during the transitions. The entered command is moved to the text area and the simulator monitor confirms the trace setting; the text area should now show:
Welcome to SDT SIMULATOR. Simulating system
Demongame.
Command : set-trace 6
Trace for System Demongame set to 6
Command :
- A graphical trace (GR trace) is also available, which means that the execution is traced in the SDL diagrams by selecting the next symbol to be executed. GR trace is by default off when you start the simulation. To enable the GR trace, enter the command
set-gr-trace 1. The value 1 specifies that the next symbol to be executed will be displayed in an SDL Editor each time the monitor is entered.
- To have an SDL Editor window appear now, enter the command show-next-symbol. An SDL Editor window appears after a short while, showing the diagram for the process Main with its start symbol selected (this is the next symbol in turn to be executed). This SDL Editor window will be used for graphically tracing the execution of the simulator during your simulation session.
- If needed, move and resize the Simulator UI and SDL Editor windows so that they both are completely visible and fit on the screen together. A few useful advice are:
- Before resizing the SDL Editor, you may hide the symbol menu and the text window by using the quick buttons. The Editor window will not be used for editing any diagrams, only viewing them.
- Check and, if required, adjust the SDL Editor's option Always new window to off. (Use the command Editor Options on the View menu for this).
- You should resize the Simulator UI window vertically to make more information visible and thus avoid scrolling later on. You may also reduce the width of the window, which only affects the width of the text area.
- During this simulator tutorial, you will not need to see the contents of the Organizer window. You may cover it, or iconify it by using the window manager.
To determine the transition in turn to be executed, you can look in the Editor window. The start state of process Main is selected and the next state symbol is Game_Off. To execute this (empty) transition, you will use the command Next-Transition.
- Execute the command Next-Transition by simply entering n-t in the input line. All commands may be abbreviated as long as the abbreviation is unique among all available commands.
The start transition of Main is now traced in two ways:
- In the text area, the textual trace information of the transition contains the process instance, the name of the initial state, and the current value of the simulation time. It ends with the Nextstate action, giving the name of the resulting process state:
*** TRANSITION START
* PId : Main:1
* State : start state
* Now : 0.0000
*** NEXTSTATE Game_Off
- In the SDL Editor, the GR trace selects the next symbol to be executed. Since this is the start state of the process Demon, that diagram is loaded into the Editor.
The next transition is the start transition of Demon, which contains the setting of a timer. To execute it, you can use another feature of the command interface:
- Place the pointer on the input line and press the arrow key <Up>. The command you entered previously appears (n-t). Execute it by pressing <Return>.
- You can use the <Up> and <Down> arrow keys repeatedly on the input line to show previously entered commands. This feature is commonly known as a command history. You may also edit a command before it is executed, for instance by changing the value of a parameter.
The start transition of Demon executes. Also, the SDL Editor sets the selection on the text symbol where the declaration of the timer T is found. This is a convention adopted in SDT to show that the next event to take place in the system, if no signal is sent from the environment, is the expire of a timer.
Note that the printed trace also contains the action of setting the timer T.
To make something of interest happen in the system you have to send signals from the environment into the system. We will start by sending the signal Newgame to the Main process. For this, you can use the command Output-Via, which takes as parameters a signal name, the parameters of the signal (none in this case), and a channel name.
In this exercise, however, you will execute commands using buttons instead of entering them textually on the input line. The command buttons are arranged into different "modules" in the left part of the Simulator UI. You should note the following:
- You can "preview" the command that is executed by a button by selecting it and move the mouse pointer away from the button before you release the mouse. The associated command is then listed in the Status Bar at the bottom of the window.
- When executing commands using the buttons, the commands are not added to the command history mentioned earlier. Thus, they are not available by using the arrow keys on the input line.
- Locate the button module Environment and click on the Send Via button. (You may have to scroll the button area to find the module.)
This button executes the Output-Via command, as is shown in the text area. A dialog is opened, asking for the value of the first parameter, the signal name. The list contains all signals possible to send from the environment:
Figure\x11 90 : Sending the Signal Newgame.
-----
(fig)
-----
- Select the signal Newgame and click the OK button.
- Another dialog is opened, asking for the channel name.
Figure\x11 91 : Selecting the Channel to Send Via.
-----
(fig)
-----
- As there is only one channel from the environment to the system, you do not have to select it explicitly. Simply click the OK button.
The signal is now sent, which is confirmed in the text area. The GR trace shows that the next symbol to execute is the input of Newgame.
- Execute the next transition by using the button Transition in the module Execute (this executes the Next-Transition command). The printed trace information shows the actions of the executed transition up until the state Game_On. Note that the start of the transition is described by the combination of a state (Game_Off) and the input of a signal (Newgame):
*** TRANSITION START
* PId : Main:1
* State : Game_Off
* Input : Newgame
* Sender : env:1
* Now : 0.0000
Since the process Game was created in the transition, the GR trace shows that the next symbol to execute is the start state of Game. This clearly demonstrates the difference between printed trace and GR trace:
- The printed trace describes what happened in the previously executed transition, including the initial state and the reached state of the process.
- The GR trace shows what will happen next, if the system is left on its own. The start symbol of the next transition is selected, which may be in a different process diagram.
- Execute the start transition of Game with the Transition button. The Game process reaches the state Losing, and the GR trace changes back to the Demon process. The SDL Editor selection shows again the text symbol with the declaration of the timer T.
- Execute the next transition, in order to have the timer expire. This transition is a timer output, i.e., a timer that sends its signal to the process which earlier executed the Set action. A timer output is also considered to be a transition. Note that the simulation time has now been updated to 1:
*** TIMER signal was sent
* Timer : T
* Receiver : Demon:1
*** Now : 1.0000
- Execute another transition. The start of this transition is described by the combination of the Generate state and the input of the timer T. The signal Bump is now sent to the Game process:
*** TRANSITION START
* PId : Demon:1
* State : Generate
* Input : T
* Sender : Demon:1
* Now : 1.0000
* OUTPUT of Bump to Game:1
* SET on timer T at 2.0000
*** NEXTSTATE Generate
The GR trace shows the next symbol to be the input of Bump in Game. In the process diagram, note that after the input of Bump, the Game process is in the state Winning awaiting either the input of another Bump or the input of a Probe signal.
- Execute the next transition to put the process Game in the state Winning. The GR trace switches back to the Demon process and indicates the next default behavior which is the expire of the timer T. However, you will instead send the signal Probe from the environment:
- Send the Probe signal by using the Send Via button as before. The GR trace switches back to the Game process.
- Execute the next transition. The Probe signal is consumed and the signal Win is output to the environment. The process returns to the state Winning and awaits a new Bump (or Probe) signal.
*** TRANSITION START
* PId : Game:1
* State : Winning
* Input : Probe
* Sender : env:1
* Now : 1.0000
* OUTPUT of Win to env:1
* ASSIGN Count := 1
*** NEXTSTATE Winning
We have now shown how you can use the commands Next-Transition and Output-Via to reach a certain point or state in the simulation.
In this exercise we will introduce some of the available commands for viewing the internal status of the system. With the graphical user interface, it is also possible to continuously view the internal status without having to execute commands manually.
In the previous exercise, you learned how to interpret the available traces. We will not focus on these details anymore, unless we need to point out some important aspect.
- To restart the simulator without leaving the Simulator UI
- To use the Command and Watch windows
- To view and interpret the process ready queue
- To view the signal input port of a process
- To view variable values
- To examine process instances
- To view active timers.
Before continuing, you need to restart the simulation from the beginning and set the trace level:
- Select the Restart command from the File menu.
- A dialog informs you that the current simulation will terminate. Confirm this by clicking OK. The text area is cleared and the simulator is now reset.
- Set the trace level to 6 and the GR trace level to 1, as before. The easiest way to do this is to use the up arrow key on the input line to find the previous Set-Trace 6 and Set-GR-Trace 1 commands and then hit <Return>.
- The Simulator UI remembers all previous commands entered on the input line in the same session, even if you have started a new simulator.
To view the internal status continuously, the Command window is used. This window shows, if your preferences are set up adequately, the process ready queue and a list of all processes.
This information is displayed in separate "modules" in the Command window by executing suitable monitor commands (List-Ready-Queue and List-Process). These modules are similar to the button modules in the main window.
- Select Command Window from the View menu to open the Command window. Resize the window so that both command modules become visible (see Figure 92). Move the window so that you can still see the SDL Editor window and use the main window.
Figure\x11 92 : The Command Window.
-----
(fig)
-----
----------------------------------------------------------------
Note:
Whether the Command window shows any commands or not is
Preference dependent. If the window does not show these command
modules at start-up, you may add the commands using the Add
Command menu choice from the Command menu and specify each
of the commands to add. See Figure 93.
----------------------------------------------------------------
Figure\x11 93 : Specifying a Command to Add.
-----
(fig)
-----
The command modules show the following information:
- The List-Ready-Queue command displays the process ready queue, i.e., an ordered list of all processes that are ready to execute a transition. The list contains an entry number (the position in the queue), the process instance, its current state, the number of signals in its input port, and the name of the signal that will cause the next transition. At this stage, both processes (Main and Demon) are to execute their start transition, so no signals are listed.
- The List-Process command displays a list of all active processes in the system. It shows the same information as the List-Ready-Queue command above. At this stage, the two lists are identical.
- Execute the next transition. The Main process is removed from the ready queue since it needs a signal input (Newgame) to execute the next transition, but this signal has not yet been sent. The process list shows the new state of Main (Game_Off).
- Execute the next transition and note the changes in the Command window. The ready queue is now empty since the Demon process needs an input of the timer signal T, but this timer has not yet expired.
- Send the signal Newgame from the environment. The Command window shows that Newgame has entered the signal input port of Main, thus adding Main to the ready queue.
- You may also print a list of all signals in the input port of the process in turn to execute. Locate the button module View and click on the Input Port button. For each signal an entry number (the position in the signal queue), the signal name, and the sender of the signal is printed. The asterisk before the entry number of Newgame indicates that this signal will be consumed by the process in the next transition.
Apart from the Command window, you can also continuously monitor variable values by using the Watch window. We will now monitor the variable GameP in process Main to see how its value changes as the process Game is started and later stopped.
- Open the Watch window by selecting Watch Window from the View menu. If needed, move it so that you can also see the contents of the Command window.
- In the Watch window, select Add from the Watch menu to add a variable to the list of variables to display.
- In the dialog, you have to specify both the process (within parenthesis) and the variable name. Enter (Main) GameP and click OK.
Figure\x11 94 : Adding a Variable to Watch.
-----
(fig)
-----
- The value null should now be displayed in the Watch window:
Figure\x11 95 : Adding GameP to the Watch Window.
-----
(fig)
-----
If necessary, resize the window so that the value becomes visible.
- Execute the next transition and check that the value of GameP in the Watch window changes to the value Game:1 as the process Game is created. Game is also added to the lists printed in the Command window.
- You can examine the newly created Game process by clicking the Process button (in the View module). The information is printed by the command Examine-PId and contains the current values of Parent, Offspring, and Sender. Parent is Main:1, as expected.
- Send the signal Endgame from the environment. Notice that Main is added to the ready queue, but after Game.
- Execute the next transition, which is the start transition of Game.
- You can now examine the Main process, since it is the next to execute. Click the Process button and compare the values printed with those from the Game process.
- Execute the two next transitions to stop the Game process. Notice that the value of GameP is reset to null and that Game no more is listed in the Command window.
There are a number of other viewing commands available in the View module. You can list the active timers in the system, check the parameters of signal and timer instances, etc. We will conclude this exercise by showing that the system is not idle, even though the ready queue is now empty.
- Check that the timer T is still active by clicking the Timer List button in the View module. The timer's name, corresponding process instance, and expiration time is printed.
- Execute the next transition. Try to examine the timer instance by clicking on the Timer button. You are informed that the timer queue is empty, i.e. the timer T is no longer active.
- To recognize and interpret a dynamic error
- To find the SDL symbol last executed
- To continue an interrupted transition
In this exercise, a dynamic error in the Demongame system will be detected. The error is found by simply executing the first four transitions of the system:
- Select the Restart command from the File menu.
- Set the trace level to 6.
- We will not use graphical trace in this exercise. So, exit the currently open SDL Editor from its File menu.
- As you will not need the Command and Watch windows, close them by selecting Close All from the View menu.
- Execute the four next transitions until a warning message is printed in the text area:
********************* WARNING ********************
Warning in SDL Output of signal Bump
Signal sent to NULL, signal discarded
Sender: Demon:1
TRANSITION
Process : Demon:1
State : Generate
Input : T
Symbol : #SDTREF(SDL,/home/xtm/sdt/
tutorial3.0/demon.spr(1),122(30,55),1)
TRACE BACK
Process : Demon
Block : DemonBlock
System : Demongame
**************************************************
The message indicates that there was no receiver for the Bump signal sent from the Demon process. This is quite true, as no process instance of type Game has been created. The definition of the Demon game is thus not correct, as it is actually required that the user always has a game running, when Bump signals are sent. A better (and correct) solution would be to direct the Bump signals from Demon to Main, which then retransmits the signal to the instance of the Game process, if it exists.
- When no GR trace is in effect, you can still see where the error occurred. Click the Prev Symbol button in the Show module. This opens an SDL Editor and selects the last symbol that was executed. In this case, the output of Bump in the Demon process.
After a dynamic error has occurred it is, of course, possible to continue the simulation, both to execute more transitions and to examine the status of the system. Note that the execution was stopped directly after the symbol in which the dynamic error occurred, i.e. the transition was interrupted.
- To execute the interrupted transition to its end, issue a Next-Transition command as usual. In the printed trace you can see that no signal was sent in the erroneous output statement.
The amount of trace information printed during transitions is set by the command Set-Trace. So far, you have used this command to set the trace value to 6. The higher the trace value you set, the more information is printed.
You can also define trace values for different parts of the system. In this way, blocks, process types, process instances, etc. can have different trace values. If a process does not have a trace value defined, the value for the enclosing block is used. If the block does not have a defined value, the value for the next enclosing structure is used, etc. The system always have a trace value defined, which initially is 4.
In this exercise, you will use these facilities to run the demon game and only print trace information for transitions executed by the processes Main and Game. The process Demon will not be traced. This is accomplished by setting the trace value for the system to 0 and the value for the block GameBlock to 6.
The GR trace value will be set to 1 throughout this exercise.
- To set trace values for different parts of a system
- To list the current trace values
- To execute the next SDL symbol only
- To execute a sequence of transitions until trace is printed
The command Set-Trace actually takes two parameters, the name of a unit and a trace value, and assigns the trace value to the unit. To easily specify the unit, you will now execute Set-Trace by using a button, instead of entering it on the input line.
- First, restart the simulator. If needed, resize and move the SDL Editor window that is opened.
- Locate the Trace module and click the Set button. In the first dialog, select the unit System Demongame and click OK. In the second dialog, select the trace value 0. Note that all possible trace values (0-6) have a short explanation.

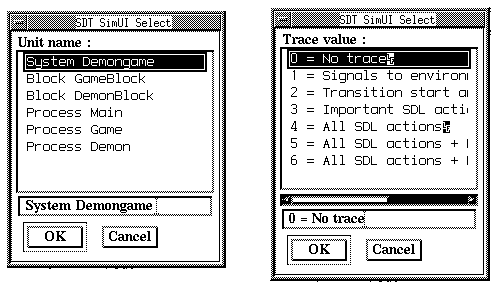

Figure\x11 96 : Setting the Trace 0 for System DemonGame.
-----
(fig)
-----
- In a similar way, set the trace value for the block GameBlock to 6.
- The Graph button can be used to set the GR trace value in the same way. Use it to set the trace value for the system DemonGame to 1.
- Check that you have set the correct trace values by using the buttons Level List and Graph List. The following information should be printed:
System Demongame : 0 = No trace
Block GameBlock : 6 = All SDL actions + Result +
Parameters
System Demongame 1 = Show next symbol when entering
monitor
To clearly see that the Demon process is not traced in the text area, we will follow the execution in smaller steps than complete transitions. The smallest execution step possible is one SDL symbol at a time. The command Step-Symbol is used for this.
- First, send the Newgame signal from the environment.
- Execute the start symbol of Main by clicking the button Into Symbol (in the Execute module). Note that the printed trace does not include information about the next state (Game_Off) since that symbol has not yet been executed (it is selected to be executed next):
*** TRANSITION START
* PId : Main:1
* State : start state
* Now : 0.0000
- Execute the next symbol with the Into Symbol button. Now, the printed trace gives information about the Game_Off state being reached:
*** NEXTSTATE Game_Off
- The execution continues in the Demon process. Execute the three symbols in the start transition of Demon. Note that no trace is printed in the text area, since Demon is not part of the block GameBlock.
- Continue executing the symbols in the Main and Game processes until the Demon process is entered again (you will need to press the Into Symbol button a number of times; watch the SDL Editor window for monitoring the execution). Note that trace is printed for each symbol.
- When the Demon process is entered, you can continue to execute symbol by symbol, or you may execute the complete transition by using the Transition button as usual. No trace is printed.
- Stop executing when you are back in the Game process.
If you would continue to execute transition by transition at this point, trace would only be printed while executing the Game process. But, you would still have to manually execute the "silent" transitions in the Demon process. To avoid this, you can use another command,
Next-Visible-Transition. This command executes a sequence of transitions; it stops after it has reached a process with a trace value greater than 0, i.e., when the first "visible" transition is executed. In this way, transitions by uninteresting parts of the system are hidden.
- Execute the command by using the button Until Trace in the Execute module. The execution does not stop until the Game process is entered again and the state Winning (or Losing) is reached. Trace is then printed for the last executed transition.
- Repeat the command a number of times. The printed trace shows that you are now switching between the states Losing and Winning in the Game process. The execution in the Demon process is hidden.
You should note, however, that the GR trace only shows the Demon process. Remember that the GR trace selects the next symbol to be executed, which is always in the Demon process when the Game process has reached the state Winning or Losing. If you want to check where in the Game process you are, do as follows:
- Click the Prev Symbol button in the Show module to select the last executed symbol. This should be a state symbol, Winning or Losing, in the Game process.
- To use the signal log facility
- To add command buttons to the Simulator UI
- To execute transitions up to a certain time value
During this exercise, you will look at the external behavior of the system, which is the same as actually playing the Demon game. To achieve this, we will set the system trace to 1. This means that you will see only signals sent to the environment and none of the actions performed during transitions. In order to log the external behavior on a file, you will also use the signal log facility.
- As usual, restart the simulator.
- Set the trace value for the system to 1.
- To log the signals sent to and from the environment, enter the command signal-log in the input line and hit <Return>. (This command has no associated button.)
The Signal-Log command takes two parameters, which are now asked for in dialogs. The first parameter is a unit name. All signals sent to, from or through the specified unit will be logged to file.
- Instead of selecting one of the units in the list, enter the unit name env in the dialog's text field. This is the way to specify the environment of the system.
Figure\x11 97 : Specifying the Environment.
-----
(fig)
-----
The second parameter is a the name of a file name to which information about the signals will be written. A file selection dialog is opened.
- In the dialog's File field, enter the file name signal.log.
When you are playing the Demon game, you are sending signals to the system from the environment. You will start by sending the signal Newgame. Since this is an action often performed in the simulation of this system, we will first define a new button that executes the proper command. In this way, you only need to click the button to send the signal.

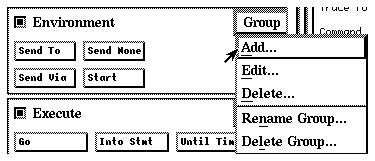

- In the Environment module, select Add from the Group menu to the far right:
Figure\x11 98 : Adding a New Button to a Module.
-----
(fig)
-----
- In the dialog, enter Newgame as the button label, but do not yet hit <Return>. Enter output-via newgame - as the command definition.
Figure\x11 99 : Adding a Button.
-----
(fig)
-----
- The "-" as the last parameter to Output-Via indicates the default value, in this case for the channel parameter. Specifying "-" as a parameter is the same as just clicking OK in the corresponding parameter dialog.
- Click Apply. The new button appears in the module, and the dialog is ready for another button definition.
- Since sending the Probe signal also is a common action, add a button Probe in the same way as above.
- If you wish, add buttons for the signals Result and Endgame in the same way. Finally, close the dialog with the OK button.
You are now ready to start playing the game. You will use the new buttons to send signals to the game, and the command Proceed-Until to execute transitions up to the next point in time when you want to send a signal.
- Send the signal Newgame with a click on the Newgame button.
- Execute transitions until the time is 5.5 by clicking the Until Time button (in the Execute module). Enter the value 5.5. This executes the command Proceed-Until 5.5. This will execute all transitions up to the point in time when the simulation time first becomes equal to the specified time value.
- Send a Probe signal.
- Execute transitions until the time is 10.3 (use the Until Time button). Note the output of the signal Win to the environment.
- Send a Probe signal again. Then, send another Probe signal. The two signals will enter the input port of the Game process. Check this by clicking the Input Port button in the View module:
Input port of Game:1
Entry Signal name Sender
*1 Probe env:1
2 Probe env:1
- Send the signal Result. Use the button if you have defined one; otherwise, use the Send Via button or enter the command on the input line.
- Execute transitions until the time is 13.5. Note the output of the signals Lose (one for each Probe) and Score to the environment.
- Exit the simulation by clicking the Exit button in the General module. This is needed to finish the signal logging. The Simulator UI itself is not closed by this command.
- Examine the file signal.log from outside the simulator. The file contains a specification of all signals sent to and from the environment. It should look like this:
Signal log for system Demongame with unit Process env
on file ...
0.0000 Newgame from env:1 to Main:1
5.5000 Probe from env:1 to Game:1
5.5000 Win from Game:1 to env:1
10.3000 Probe from env:1 to Game:1
10.3000 Probe from env:1 to Game:1
10.3000 Result from env:1 to Game:1
10.3000 Lose from Game:1 to env:1
10.3000 Lose from Game:1 to env:1
10.3000 Score from Game:1 to env:1
Parameter(s) : -1
The facility of a simulator demonstrated in this exercise is the breakpoint. A breakpoint can be used to stop the execution and activate the monitor system at a certain point of interest. There are four kinds of breakpoints; symbol, transition, output and variable. The first two kinds will be explained in the following.
- To set a breakpoint on an SDL symbol
- To set a breakpoint on a transition
- To list all defined breakpoints
- To graphically trace each executed SDL symbol
- To get a textual SDT reference to an SDL symbol
- To continuously execute the system.
To see where a breakpoint is reached, you will start the execution of the system with the Go command. This command continuously executes transitions until an error occurs, a breakpoint is reached, or the system is completely idle. You should first set up the system in a way suitable for continuous execution:
- Restart the simulator.
- Set the trace value for the system to 0 to avoid trace information being printed during execution.
- Set the GR trace value for the system to 2 (you may use the Graph button from the Trace module to do this). Each SDL symbol will then be selected in the SDL Editor as it is executed, allowing you to follow the execution even though no trace is printed.
A symbol breakpoint is set at a specific SDL symbol in the process diagrams. Symbol breakpoints are checked before symbols are executed, i.e. the symbol is not executed when the breakpoint is reached. We will now show how to set a breakpoint on the first task symbol in the Game process, i.e. the initializing of the variable Count to 0.
- First, send the signal Newgame (using the new button). This is very important, as otherwise the Game process will not be created and the breakpoint will never be reached!
- In the SDL Editor, bring up the Game process diagram from the Diagrams menu.
- If, for some reason, this diagram is not included in the menu, you have to open it explicitly. Either click the Open quick button and select the file game.spr, or double-click the Game diagram icon in the Organizer window.
- To define the breakpoint, click the Symbol button in the Breakpoint module. A dialog asks for an SDT reference to the SDL symbol where you want the breakpoint. An SDT reference is a textual description of a symbol in an SDL diagram. You do not have to enter the SDT reference yourself; it can be fetched from the SDL diagram.
- Do not close the dialog. Go back to the SDL diagram and select the task symbol "Count:=0". Then, select the command Show GR Reference from the Tools menu in the Editor. Another dialog shows the textual SDT reference for the selected symbol. You will now copy the text from this dialog to the dialog in the Simulator UI.
--------------------------------------------------------------------
Note:
The text in the dialog is also selected; do not click anywhere to
change the selection. If you do, close the dialog and open it again.
--------------------------------------------------------------------
- With the reference text still selected, go back to the Simulator UI dialog and insert the text in the text field by clicking the middle mouse button. The two dialogs should now look like this:
Figure\x11 100 : Copying an SDT Reference.
-----
(fig)
-----
- Click OK in the Show GR Reference dialog in the Editor.
- Click OK in the Simulator UI dialog. Another dialog appears.
Figure\x11 101 : Specifying the Breakpoint Command.
-----
(fig)
-----
- Simply click OK in this dialog (you do not want any command to be executed when the breakpoint is triggered). The symbol breakpoint is now defined.
- List all breakpoints by clicking List in the Breakpoint module. The definition of the symbol breakpoint is printed.
- Start executing the system by pressing the Go button in the Execute module. Note how the SDL symbols are selected in rapid succession as they are executed. After a few seconds, the breakpoint is reached and the execution stops. The symbol where the breakpoint was set is next to be executed.
A transition breakpoint is set at a specific transition in the system. Transition breakpoints are checked before transitions are executed, i.e. the transition is not executed when the breakpoint is reached. We will set a breakpoint in the Demon process, when it is in the state Generate and receives the timer T.
- To define the breakpoint, click the Transition button in the Breakpoint module. This command takes a number of parameters In the dialogs that appear:
- Select the Demon process and click OK.
Figure\x11 102 : Specifying the Process.
-----
(fig)
-----
- Leave the instance number empty and click OK.
Figure\x11 103 : Leave the Instance Number Empty.
-----
(fig)
-----
- Select the Generate state and click OK.
Figure\x11 104 : Specifying the State Generate.
-----
(fig)
-----
- Select the timer T and click OK.
Figure\x11 105 : Specifying the Timer T.
-----
(fig)
-----
- Simply click OK in the remaining dialogs.
Figure\x11 106 : Leaving the Remaining Dialogs Empty.
-----
(fig)
-----
To omit selecting a parameter value is interpreted so that any value, name or number, will match this parameter. In this case, any instance of Demon and any sender will match the breakpoint.
- To see how the new breakpoint was defined, list all breakpoints with the List button:
2
Process name : Demon
Instance : any
State : Generate
Input : T
Sender name : any
Sender instance : any
Stop each time
- Resume execution of transitions by clicking the Go button. When the breakpoint is reached, you can see that the current state of the system matches the breakpoint definition:
Breakpoint matched by transition
PId : Demon:1
State : Generate
Input : T
Sender : Demon:1
Now : 1.0000
There are a number of commands in the simulator monitor that change the behavior of the system. These commands should be used with care, since it is no longer the original system that is simulated after such a command has been issued. These commands are still useful, especially in debugging situations, for making minor changes so that it is possible to continue the simulation after an error has been detected. They can also be used to force the system into certain situations, that otherwise would require a large number of transitions to be attained.
- To change and add commands in the Command window
- To create a process manually
- To change the process scope
- To change the value of a process variable
- To change the state of a process
- To set and reset a timer manually
In the following to exercises, you will be changing processes and timers. Before continuing, you will set up the simulation and the Simulator UI in a suitable way.
- Restart the simulator.
- Open the Command window through the View menu. You will now change the commands executed in the Command window. The List-Process command is to be replaced by Examine-Pid, and a new command, List-Timer, will be added.
- In the List-Process command module, select Edit from the Command menu to the far right. (This menu works in the same way as the Group menu in the button modules.)
- In the dialog, change List-Process to examine-pid and click OK.
- Go to the Command window's menu bar and select Add Command from the Command menu. In the dialog, enter the command list-timer and click OK.
- A new command module is added to the window. Resize the window so that all three modules are visible.
- Set the system trace value to 6 to get full trace.
- Execute the two first transitions so the processes Main and Demon are started.
- If the GR trace in the SDL Editor window makes it difficult to see the output in the Command window, set the system GR trace to 0.
In this exercise, we will put the system in the state it would be in after the reception of a Newgame signal. This will be accomplished without actually sending the signal. Instead, we will manually create an instance of process type Game, using the Create command.
- Create the Game process by pushing the Create button (in the Change module). Select the process Game, and click OK.
- In the next dialog, select the parent process Main and click OK. This sets up the Parent-Offspring link between the process instances.
Figure\x11 108 : Creating the Process Game from Process Main.
-----
(fig)
-----
To complete the actions taken when a Newgame signal is received, you must also set the GameP variable in Main, and put Main in the state Game_On. This is done with the commands Assign-Value and Nextstate. However, these commands operate on the process next to execute, which at this stage is Game, as can be seen in the ready queue printed in the Command window.
Figure\x11 109 : The Ready Queue.Figure legend: Next process to execute is Game.
-----
(fig)
-----
Therefore, you first have to change the current process, also known as the process scope.
- Change the scope by clicking the Set Scope button in the View module. Select the process Main in the dialog and click OK.
Figure\x11 110 : Setting the Scope on Process Main.
-----
(fig)
-----
The Examine-PId command in the Command window shows that Main is the current process. The variable GameP must be set to the value of Offspring in Main. In the Command window, check that this value is Game:1.
Figure\x11 111 : Process Main is the Current Process.Figure legend: The Offspring
ofthe current process is Game:1.
-----
(fig)
-----
- Assign the GameP variable by clicking the Variable button in the Change module. Select the variable GameP, and enter the PId value Game:1.
Figure\x11 112 : Specifying GameP = Game:1.
-----
(fig)
-----
- To put the Main process in the correct state, use the State button. Select the state Game_On.
The system is now in exactly the state it would be in after the reception of a Newgame signal. Even though you have changed the process scope, the next transition to be executed is still the start transition of Game. (You can check this by viewing the process ready queue. See Figure 109 on page 161.)
- Execute the next transition and check that the Game process is started.
In this exercise, we will execute Set and Reset actions on timers directly in the monitor system. At this stage, the timer T is active, as it has been set by the Demon process. You can check this by looking at the List-Timer module in the Command window.
Figure\x11 113 : The Timer T is Active.
-----
(fig)
-----
- Reset the timer by clicking the Reset Timer button in the Change module. Select the timer T and click OK.
- Try to execute the next transition and note the message printed:
No process instance scheduled for a transition
The system is now completely idle, i.e., there are no transitions in the system that can be executed. The Command window shows that both the ready queue and the timer queue is empty. To restart the system you must perform a set operation on timer T in process Demon.
- Click the Set Timer button, select the timer T and enter a time value of 10.
Figure\x11 114 : Setting the Timer to 10.
-----
(fig)
-----
- Execute the next transition and check that the timer was set at time 10 (look at the trace in the Command window).
*** TIMER signal was sent
* Timer : T
* Receiver : Demon:1
*** Now : 10.0000
In this exercise, we will demonstrate the power of Message Sequence Charts as a method of illustrating, in a graphical way, the dynamic behavior of the system. This can easily be done when simulating the system by using MSC trace. MSC trace transforms some of the SDL events that take place into MSC events; typically sending of signals and dynamic creation of processes. The trace can then be graphically logged in an MSC Editor during the execution.
Earlier in this tutorial, you drew a Message Sequence Chart which illustrated a simple sequence of messages. We will now run the simulator and generate the MSC trace of the events which actually take place.
- To start and stop logging of MSC events
- To trace back from an MSC to an SDL diagram
- Restart the simulation.
- Make sure the GR trace is disabled to avoid having the SDL Editor window being updated and raised (push the Graph List button in the Trace module and verify that system GR trace is 0).
By default, the MSC trace is enabled for the entire system. You must, however, explicitly start the interactive logging of MSC events:
- Click the Start MSC button in the Trace module. A dialog is issued, where you are prompted to specify the amount of symbols to include in the MSC trace. You will include states in the MSC trace, so select 1 and click OK.
Figure\x11 115 : SPecifying to Include States in the MSC Trace.
-----
(fig)
-----
- In a few moments an MSC Editor is opened, displaying an MSC diagram named "SimulatorTrace." If needed, move and resize the window to make it fit on the screen together with the Simulator UI.
- Before resizing the MSC Editor, you may hide the symbol menu and the text window by using the quick buttons. You should not edit the generated MSC, so there is no need for these windows.
Initially, the system has three active instances, the processes Main_1_1 and Demon_1_2, as well as env_0 which has been introduced in order to represent the environment to the system:
Figure\x11 116 : The Initial Appearance of the MSC.
-----
(fig)
-----
- Send the signal Newgame from the environment. This is now displayed in the MSC Editor as a message sent from the instance env_0 to the instance Main_1_1.
At this stage, the message is marked with an asterisk at its end point, denoting that the message has been sent but not yet consumed. (In other circumstances, the asterisk may indicate some kind of error or situation that requires special attention).
- Execute the next transition. A condition symbol with the text Game_Off appears on the instance axis for the process Main. This symbol shows that the process has started executing and has reached the corresponding SDL state, Game_Off.
Figure\x11 117 : The Condition Symbol.
-----
(fig)
-----
- Execute the next transition. The timer T is set in the Demon process. The vertical coordinate is incremented downwards in the MSC, enhancing the impression of an absolute order of events. Also, a condition symbol with the text Generate is drawn on the instance axis.
- Execute the next symbol only (use the Into Symbol button). The Main process consumes the Newgame message; the consumption is indicated by removing the asterisk. Note that the start point and the end point of the message have different vertical positions, since the timer T was set after the message was sent.
- Execute the next symbol. An instance of the Game process is created, thus adding a new instance head and instance axis. The MSC should now look like this:
Figure\x11 118 : The MSC After Creating the Game Process.
-----
(fig)
-----
- Terminate the current transition and execute the next transition by clicking the Transition button twice. The second transition causes the Game process to enter the state Losing.
- Execute the next three transitions. The timer signal T is consumed and the signal Bump is sent and consumed. The Game process is now in the state Winning. Note how the signal interchange is shown in the MSC.
- Next we illustrate a message which is consumed immediately. Send the signal Probe from the environment and execute the next symbol. First, the message Probe is displayed (marked with an asterisk), then it is redrawn, keeping its horizontal alignment.
- Terminate the current transition. The system responds with the signal Win.
- Send the signal Result and execute the next transition. In the MSC, you can see that the message Score has the parameter 1.
- End the game by sending the Endgame signal and execute the next two transitions. The Game process is stopped.
The MSC should now look like in the figures below. Compare this diagram with the one in Figure 80 on page 116. You will notice differences between the hand-drawn and the generated diagram. These discrepancies are quite natural, since it is impossible to predict the dynamic behavior of a system just by looking at the SDL diagrams.
Figure\x11 119 : The Finished MSC 1(2).
-----
(fig)
-----
Figure\x11 120 : The Finished MSC 2(2).
-----
(fig)
-----
From the generated MSC diagram, you may obtain a trace back to the SDL source diagrams.
- From the MSC Editor's Window menu, select Info Window. A window is opened, containing information about the graphical object which is currently selected. (The amount and type of information depends on what sort of object you have selected.)
Figure\x11 121 : The MSCE Info Window.Figure legend: The window shows information
relatedto the message Bump.
-----
(fig)
-----
- Select a few different objects in the MSC Editor and note how the information in the Info window changes.
- Select the message Bump and click on the button Show SDL Symbol in the Info window. An SDL Editor is opened, in which the symbol corresponding to the actions of sending or consuming the SDL signal Bump is selected:
- If you have selected the message Bump by clicking on a point which is closer to the start point of the message than to the end point, the corresponding SDL output symbol will be selected.
- Otherwise, the corresponding SDL input symbol will be selected.
- Stop the logging of MSC events by clicking the Stop MSC button.
- Save the generated MSC diagram under the file name SimulatorTrace.msc (use the Message Sequence Editor's Save command for this).
- Exit the MSC Editor.
In this final exercise of the SDT Simulator, you will learn to use the Coverage Viewer. The Coverage Viewer is a graphical tool that shows how much of a system has been covered during a simulation in the terms of executed transitions or symbols. By checking the system coverage, you can for instance see what parts of the system that have not been executed in the simulation so far.
The Coverage Viewer reads a file with printed statistics of a system execution. The file can be generated at any point during simulation.
- To create a coverage file
- To start the Coverage Viewer
- To interpret and change the coverage tree information
- To open a more detailed coverage chart
- To exit the Simulator UI
- Restart the simulator.
- Send the signal Newgame. Execute seven (7) transitions until the printed trace shows that the Game process is in the state Winning.
- Send the signal Probe and execute the next transition.
Let us see how much of the system we have executed so far. To create a file with coverage information, use the command
Print-Coverage-Table. This command has no associated button, so you have to enter it textually:
- On the input line, enter pr-cov and hit <Return>. A file selection dialog is opened. Enter the file name win.cov.
- From the Organizer's Tools menu, select Coverage Viewer. The main window of the Coverage Viewer is opened.
- If you have trouble locating the Organizer window, select Show Organizer from the SDL Editor's Tools menu.
- Click on the Open quick button and select the file win.cov. A transition coverage tree is now displayed:
Figure\x11 122 : A Transition Coverage Tree.Figure legend: Only the upper left
partof the window contents is depicted.
-----
(fig)
-----
- Since the coverage tree is quite large, you may maximize the window (by using the window manager) while working with the Coverage Viewer. When returning to the Simulator UI, you can simply restore the size of the window to its original size.
- Alternatively, you may also zoom out the window contents with a number of clicks on the quick button.
The coverage tree shows the diagram structure of the Demongame system. Beneath each process diagram (Main, Game, Demon), you see all possible transitions in that process, defined by a state and the possible signal inputs from that state. The start transitions are represented by an SDL start symbol.
The number below each symbol in the tree is the number of times the symbol has been executed so far. In addition, each symbol is filled with a gray pattern to indicate to what extent it has been executed. Parts of the system that never have been executed have a zero value and "empty" symbols. Parts that have been completely traversed by the execution so far have a non-zero value and completely filled symbols.
From the displayed tree, you can find out the following information:
- In the states Losing and Winning, one out of four transitions have been executed. Thus, these state symbols are filled to 1/4.
- In the Main process, two out of three transitions have been executed. Thus, the process symbol is filled to 2/3.
- In the Demon process and the block DemonBlock, all transitions have been executed at least once. Thus, these symbols are completely filled.
- In the system as a whole, a little more than half of all possible transitions have been executed.
- To only see those transitions that never have been executed, click on the Bottom quick button. You can now see which signals must be sent in which states to execute the rest of the system.
- The Bottom quick button actually shows those symbols that have been executed the least number of times. The symbols that are dashed are present only to make the structure complete.
- In the same way, to only see those transitions that have been executed at least once, click on the Top quick button. You can now see which signals have been sent so far in the system.
- The Top quick button actually shows those symbols that have been executed the most number of times. In this case, no transition has been executed more than once.
- To see the whole tree again, click on the Whole Tree quick button. If you want to see a transition in the SDL Editor, just double-click on one of the signal input symbols or start state symbols. Try this.
The Coverage Viewer can also show a symbol coverage tree, i.e. how many times each SDL symbol in the process diagrams have been executed:
- Switch to a symbol coverage tree by clicking on the Coverage Type quick button. Beneath each process diagram, you will now see a small icon for each SDL symbol. To see which SDL symbol an icon represents, double-click the small icon.
- Switch back to a transition coverage tree and go back to the Simulator UI.
- Execute three more transitions to put the Game process in the state Losing again.
- Send the signal Result. Execute four more transitions to return to state Winning.
- Send the signal Endgame. Execute two more transitions to stop the Game process.
- Create a new coverage file. Press the <Up> arrow button on the input line and simply add the file name end.cov.
- Open the new file in the Coverage Viewer. As you can see, the Main process has now been completely executed. The Losing and Winning states are also more filled.
- To see what transitions have still not been executed, you can click the Bottom quick button. If, however, you click the Top quick button you will only see the most executed transition (and other symbols), i.e. the input of timer T, not all transitions that have been executed.
- To see more of the tree, select Increase Tree from the Tree menu. The input of Bump should now be added. Select the command again and all remaining executed transitions should be added.
- Select the system diagram in the Coverage Viewer. From the Tools menu, select Show Details. The Coverage Details window is opened.
The displayed coverage chart shows how many transitions that have been executed a certain number of times. The chart should contain four bars:
Figure\x11 123 : The Coverage Details Window.
-----
(fig)
-----
- Select the bars one at a time and look at the text in the Status Bar at the bottom of the window. You will now see how many transitions that have been executed 0, 1, 2 and 3 times. To see which transitions that have not been executed at all, do as follows:
- Select the "zero bar" furthest to the left. Click the Show in Editor quick button. The SDL Editor is opened, showing the three transitions in the Game process that remain to be executed.
- If the transitions can be found in more than one diagram, a confirmation dialog is issued between each diagram that is opened. Simply click OK to see the transitions in the next diagram.
- Select another symbol in the coverage tree. The Coverage Details window is now updated to show the coverage chart for that symbol.
- "Play around" in the Coverage Viewer as much as you like. You should note, however, that the Demongame system is a bit too simple to give full justice to the power of the Coverage Viewer.
You will now close down the Simulator UI.
- First, exit the Coverage Viewer from the File menu.
- Then, exit the Simulator UI from the File menu. You will be asked whether to save the changes to the sets of variables in the Watch window, commands in the Command window, and buttons in the button area. If you choose to save them, they will become the default the next time you start the Simulator UI from the same directory.
You have now learned how to "animate" an SDL system by generating, executing and tracing a simulator.
If your SDT configuration includes the Validator tool, we suggest that you proceed with the exercises on the Validator. These exercises start on page 179.
Table of Contents
Next Chapter
